Corona Power Supplies
Corona Supplies supply variable frequency, IGBT, Power Supplies from 1kW to 20kW. Power Supplies from 4Kw to 20KW are based on the tried and tested Sherman Treaters reactive power generators.
True Power - Corona Supplies Power Supplies provide a quantitative measure of the match between the load and the corona power source. This is a significant step towards more efficient corona treatment and it means that corona power supply display panels can show line operators true output conditions. Furthermore due to impedance matching, maximum power is delivered to the discharge electrode by tuning the inductance and the capacitance of the power supply and electrode station to resonance, where the power supply is balanced with corona treatment station at any one moment in time. The power supply is continuously, every cycle, adjusting itself to the optimum electrode load conditions.
Reactive Power - Corona Supplies Power Supplies from 4KW and above also have the added benefit of showing reactive power, or in other words power lost. This allows the operator to make sure that no power is being lost within the system and that impedance matching is indeed occurring.

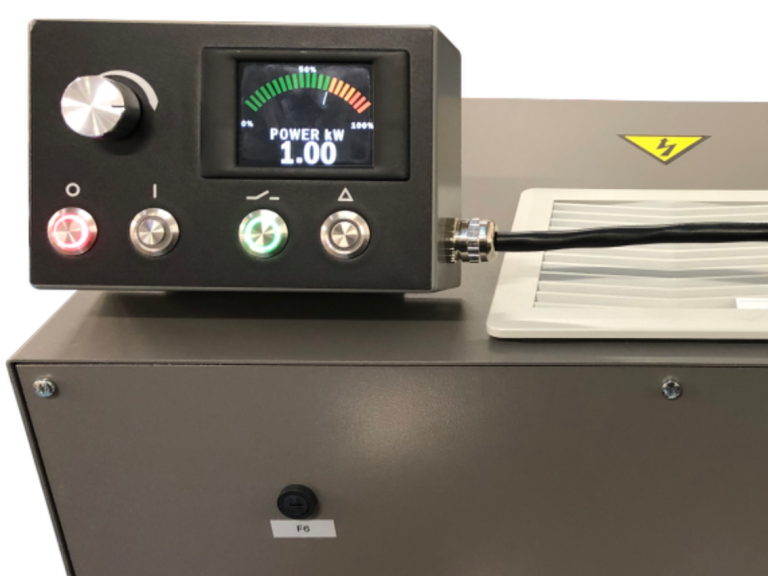

1-3 kW Corona power supplies from Corona Supplies are available from 0.3KW to 3.0KW. Using latest technology means increased energy efficiency, reduced running costs, with more treatment for less power.
- Control by either customer signals or optional remote panel
- Fault status outputs
- Proportional control option
- Single phase supply
- Compact cabinet

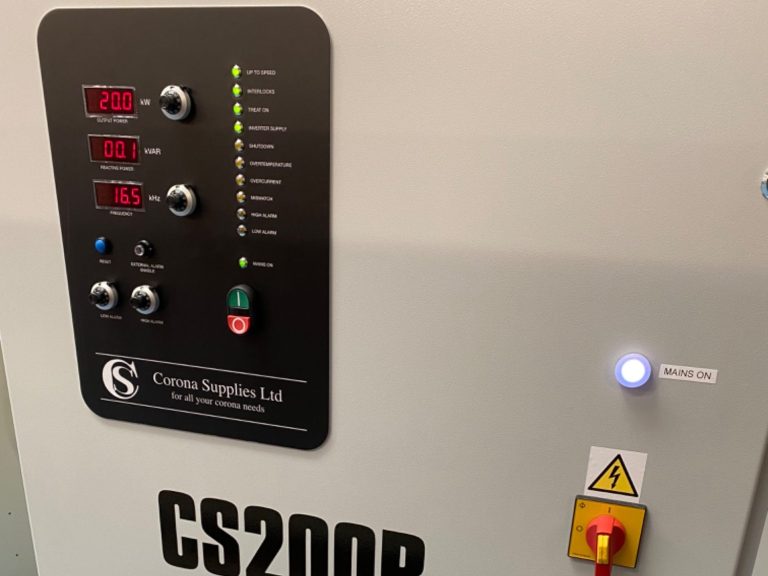

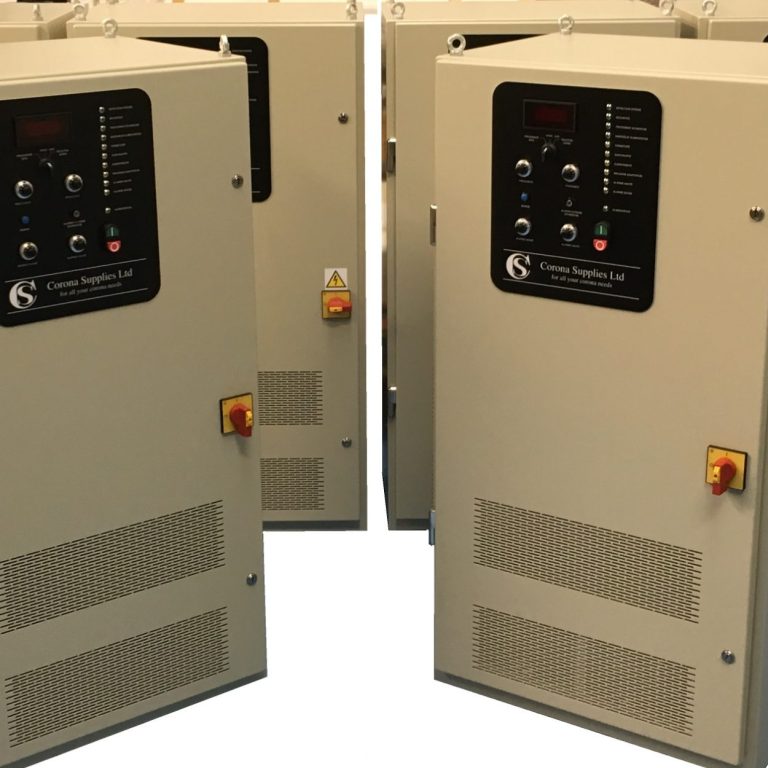

4-20 kW Corona Supplies CSR Range of Power Supplies are available from 4kW to 20KW for use in wide web, blown film, cast film, extrusion coating and conversion applications. The CSR range are very reliable and efficient, displaying true power, reactive power and frequency.
- IGBT technology
- Variable frequency allows easier load matching
- True output power, Reactive power & frequency display
- High & Low output alarms as standard
- Multiple input voltage
- Free standing cabinet

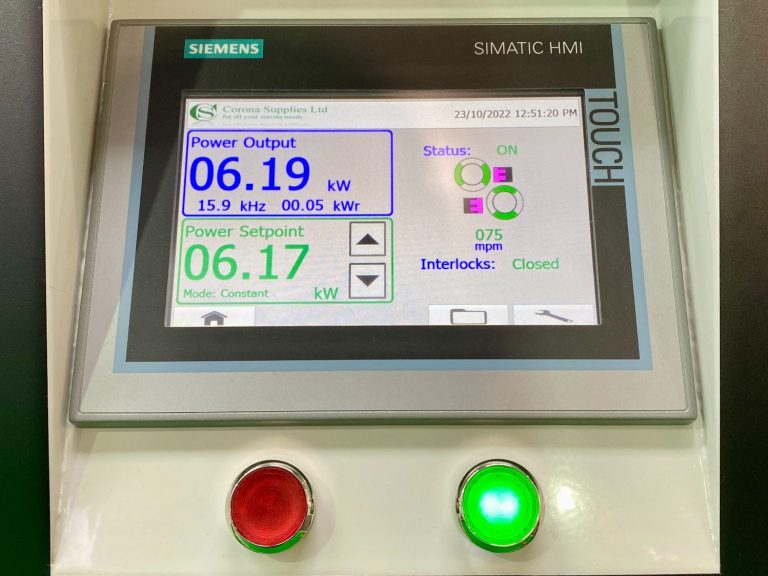

Digital Control Corona Supplies new CSR+ Power Supplies with touch screen operator interface allows easy access to a number of generator and treater station parameters.
- Clear visual indication of generator and treater operation
- Proportional control, Watt density and wet start options as standard
- Recipe storage for quick access to predefined treatment parameters
- Downloadable trend plot
- Remote visual indication of generator status
- Touch panel can be installed remotely in customers control desk
